RapidSpell Desktop and Thesaurus Desktop Integration With TX Text Control

This article is for the integration of RapidSpell Desktop .NET v4.5 and higher with TX Text Control v15 and older. For use with older versions of RapidSpell, please see this article. For use with newer versions of TX Text Control please see "Using RapidSpell With 3rd Party Controls" in the product Help.

Integration of RapidSpell and Thesaurus with TX Text Control can be as simple as dragging controls on to the Form and setting two properties in the property editor - however, TX Text Control is a powerful word processor component, and full integration of spell checking can be a little more complex with some subtle points to consider. This article intends to show how to achieve full integration, and will address commonly asked questions about this subject.

To show fullest usage of spell checking with TX Text Control we have started from the "TX Text Control Words" demo project distributed with TX Text Control. The following demonstrates nearly all requirements customers have faced. This article is aimed at TX Text Control 15 Professional (Pro is required for headers/footers/text-frames) - however it can easily be adapted for non Professional versions. Support for TX 15 was added in RapidSpell Desktop 4.5.

Demo Projects

Please find complete, running projects under the main product "Examples" folder (3rd Party Integration).

1. RapidSpell Setup

a) Add references to Keyoti.RapidSpell.NET2.TXSupportvXX.dll (where XX is the version of TX TextControl) and Keyoti.RapidSpellMDict.dll Starting from the "TX TextControl Words" the only things that need to be done are adding references in the project to Keyoti.RapidSpell.NET2.TXSupportv15.dll and Keyoti.RapidSpellMDict.dll (found in C:\Program Files\Keyoti Inc\RapidSpell Desktop .NET\3rd Party DLLs)

b) You may want to add controls from Keyoti.RapidSpell.NET2.TXSupportvXX.dll to your tool box if not there already (right click toolbox, choose items, browse for Keyoti.RapidSpell.NET2.TXSupportvXX.dll). Note, you must not have a reference to Keyoti.RapidSpell.dll or Keyoti.RapidSpell.NET2.dll in your project.

Note if you added items to your toolbox from the Keyoti.RapidSpell.NET2.dll, you will find that when dragging controls from the toolbox, that a reference is added to the Keyoti.RapidSpell.dll, this is OK, but remember to remove the reference from your project references

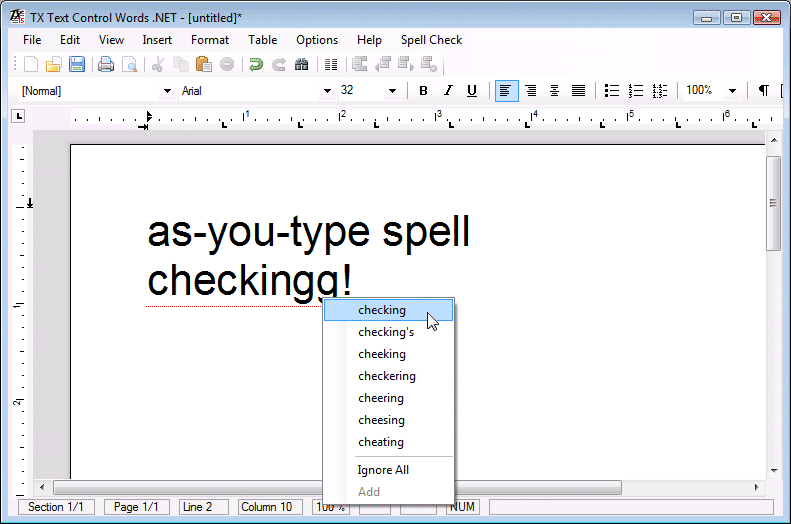

2. Simple Dialog & As-you-type Checking

It may help to refer to the demo projects which are included with the product. Here are the very simple steps to integrate the spell checkers. Note that it is not mandatory to use both RapidSpellAsYouType and RapidSpellDialog.

Basic Setup

a) Open/create a project which uses TX Text Control

b) Open the form holding TX Text Control, and drag on RapidSpellAsYouType, RapidSpellDialog and RapidSpellAYTDialogCoupler.

c) Configure RapidSpellAsYouType and RapidSpellDialog properties in RapidSpellAYTDialogCoupler.

d)
For WinForms:- Drag on a txTextControlAdapter to be used for RapidSpellAsYouType, drag on another txTextControlAdapter to be used for RapidSpellDialog . Set the TextControl property of the txTextControlAdapters to the instance of the Text Control to be spell checked.

For Browser:- Same as above but instead of using txTextControlAdapter use txTextControlBrowserAdapter.

e) Connecting the Adapters;

RapidSpellAsYouType - in the main form Load event set the TextComponent property of rapidSpellAsYouType to the instance of the txTextControlAdapter to be used for rapidSpellAsYouType.

C#
this.rapidSpellAsYouType1.TextComponent = this.ayt_txTextControlAdapter;
ayt_txTextControlAdapter.DocumentLoaded();


VB.NET
        RapidSpellAsYouType1.TextComponent = ayt_TxTextControlAdapter
        ayt_TxTextControlAdapter.DocumentLoaded()

RapidSpellDialog - Set the ThirdPartyTextComponentToCheck property of RapidSpellDialog to the instance of the txTextControlAdapter to be used for RapidSpellDialog.

f) Add a button or menu item and start RapidSpellDialog in it's click handler, calling rapidSpellDialog.Check()

g) Set the UnderlineStyle property of RapidSpellAsYouType to Dashed or Single.

At this stage the spell check should work, however a few changes are needed for optimal integration.

2.1 ContextMenuStrip

C#
	if (rapidSpellAsYouType1.GetSuggestionsToolStripItems() == null)
{
...
}




VB.NET
    If RapidSpellAsYouType1.GetSuggestionsToolStripItems() Is Nothing Then
...
End If

2.2 Document Loading/Creation

Call DocumentLoaded() manually for the txTextControladapter used for rapidSpellAsYouType, when loading (eg. FileOpen()) or creating a new document (eg. FileNew()) methods

2.3 TextFields

C#
ayt_TxTextControlAdapter.IgnoreTextChanged = true;

TXTextControl.TextField tf = new TXTextControl.TextField("helloo field");
tf.DoubledInputPosition = true;
tf.ShowActivated = true;
tf.ID = 1;
//Note that this property exists.  rapidSpellAsYouType1.IgnoreReadOnlyFields = true;
textControl1.TextFields.Add(tf);

ayt_TxTextControlAdapter.IgnoreTextChanged = false;
rapidSpellAsYouType1.ForceCheckAll();


VB.NET
ayt_TxTextControlAdapter.IgnoreTextChanged = true

Dim tf as new TXTextControl.TextField("helloo field")
tf.DoubledInputPosition = true
tf.ShowActivated = true
tf.ID = 1
'Note that this property exists.  rapidSpellAsYouType1.IgnoreReadOnlyFields = true
textControl1.TextFields.Add(tf)

ayt_TxTextControlAdapter.IgnoreTextChanged = false
rapidSpellAsYouType1.ForceCheckAll()

2.4 Browser Usage

3. As You Type ContextMenuStrip Customization

To use the spell checker's suggestion items in an externally provided ContextMenu(Strip);

C#
private void contextMenuStrip1_Opening(object sender, CancelEventArgs e)
        {
            //clear any old suggestions, leaving the first two menu items which we don't want to clear
            if (contextMenuStrip1.Items.Count > 2)
                while (contextMenuStrip1.Items.Count > 2)
                    contextMenuStrip1.Items.RemoveAt(2);

            //grab the suggestions from the spell checker
            ToolStripItem[] suggestions = rapidSpellAsYouType1.GetSuggestionsToolStripItems();

            //if there are suggestions (ie if the click was on an error), show them
            if (suggestions != null)
            {
                contextMenuStrip1.Items.Add(new ToolStripSeparator());
                contextMenuStrip1.Items.AddRange(suggestions);
            }
        }

VB.NET
Private Sub contextMenuStrip1_Opening(ByVal sender As System.Object, ByVal e As System.ComponentModel.CancelEventArgs) Handles contextMenuStrip1.Opening
        'clear any old suggestions, leaving the first two menu items which we don't want to clear
        If (contextMenuStrip1.Items.Count > 2) Then

            While (contextMenuStrip1.Items.Count > 2)
                contextMenuStrip1.Items.RemoveAt(2)

            End While
        End If
        Dim suggestions() As ToolStripItem = RapidSpellAsYouType1.GetSuggestionsToolStripItems
        'if there are suggestions (ie if the click was on an error), show them
        If (Not (suggestions) Is Nothing) Then
            contextMenuStrip1.Items.Add(New ToolStripSeparator)
            contextMenuStrip1.Items.AddRange(suggestions)
        End If
    End Sub

4. Thesaurus Setup

Thesaurus Desktop .NET is a separate download to RapidSpell.

a) Add references to Keyoti.Thesaurus.TXTextControlAdapter.vXX.dll and Keyoti.Thesaurus.Windows.NET2.DLL (found under C:\Program Files\Keyoti Inc\Thesaurus Desktop .NET)

b) You may want to add controls from both DLLs to your tool box (right click toolbox, add/remove items, find controls named Thesaurus, Thesaurus Control and ThesaurusTXAdapter). Note, be sure to select the TX adapter control for the correct version; You will see multiple controls in the list, for different TX versions, ensure you pick the correct version, otherwise you will get references added to your project which are dependent on a different TX version.

5. Adding Thesaurus to TX Text Control

5.1 Simple, dialog based thesaurus

a) Drag the Thesaurus control onto the form.

b) Drag the ThesaurusTXAdapter control onto the form.

c) Set ThesaurusTXAdapter.Control to the instance of TextControl, and set Thesaurus.ThirdPartyTextComponent to the instance of ThesaurusTXAdapter.

d) Add a menu item for the Thesaurus in the main menu and an event handler to start the Thesaurus dialog.

C# [Attach this event handler to the menu item click event]

private void thesaurusToolStripMenuItem_Click(object sender, EventArgs e)
{
	if (this.textControl1.Text.Length == 0)
		MessageBox.Show("You must select a word to use the thesaurus.");
	else
	{
		this.thesaurus1.DialogForm.TopMost = true;
		this.thesaurus1.Show();
	}
}


VB.NET
Private Sub ThesaurusToolStripMenuItem_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles ThesaurusToolStripMenuItem.Click
        If Me.textControl1.Text.Length = 0 Then
            MessageBox.Show("You must select a word to use the thesaurus.")
        Else
            Thesaurus1.DialogForm.TopMost = True
            Me.Thesaurus1.Show()
        End If
    End Sub

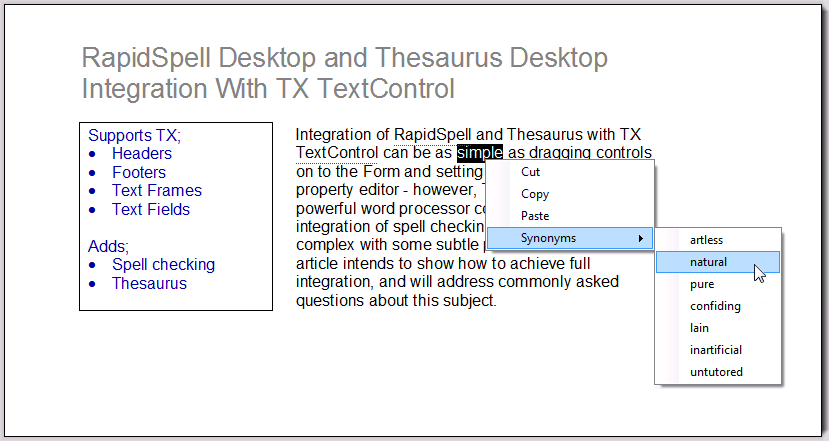

5.2 Full, context menu and dialog based thesaurus

We will now modify the as-you-type context menu and integrate with a new dynamic menu.

a) Follow all steps in 5.1 to add the dialog thesaurus.

b) The nature of the thesaurus is such that it's context menu is suited to being a sub-menu, so it is necessary to build the ContextMenu items at run-time. Add a context menu to the form if one doesn't already exist and assign it to the TextControl instance (the demo project will use the existing ContextMenu_Text menu).

c) Add a menu item called "Synonyms" to the context menu strip, this is where the thesaurus items will be added.

d) Handle the context menu strip's Opening event, and create the menu items there. (The demo project uses ContextMenu_Text which already has an Opening handler).

C# [Attach this event handler to the menu PopUp event]
private void ContextMenu_Text_Popup(object sender, System.EventArgs e)
{
	ContextMenu_Text_TableProperties.Enabled = (textControl1.Tables.GetItem() != null);
	ContextMenu_Text_Cut.Enabled = textControl1.CanCopy;
	ContextMenu_Text_Copy.Enabled = textControl1.CanCopy;
	ContextMenu_Text_Paste.Enabled = textControl1.CanPaste;

	ToolStripItem[] suggs = thesaurus1.GetSuggestionToolStripItems();
	synonymsToolStripMenuItem.DropDown.Items.Clear();
	//If we have suggestions, add them too
	if (suggs != null)
	{
		synonymsToolStripMenuItem.DropDown.Items.AddRange(suggs);
	}
	else
	{
		ToolStripMenuItem noSuggs = new ToolStripMenuItem("No suggestions");
		noSuggs.Enabled = false;
		synonymsToolStripMenuItem.DropDown.Items.Add(noSuggs);
	}

}


VB.NET [Attach this event handler to the menu PopUp event]

Private Sub ContextMenu_Text_Popup(ByVal sender As Object, ByVal e As System.ComponentModel.CancelEventArgs) Handles ContextMenu_Text.Opening
        ContextMenu_Text_TableProperties.Enabled = (Not (textControl1.Tables.GetItem Is Nothing))
        ContextMenu_Text_Cut.Enabled = textControl1.CanCopy
        ContextMenu_Text_Copy.Enabled = textControl1.CanCopy
        ContextMenu_Text_Paste.Enabled = textControl1.CanPaste

        Dim suggs As ToolStripItem() = Thesaurus1.GetSuggestionToolStripItems()
        synonymsToolStripMenuItem.DropDown.Items.Clear()
        'If we have suggestions, add them too
        If (Not suggs Is Nothing) Then

            synonymsToolStripMenuItem.DropDown.Items.AddRange(suggs)

        Else

            Dim noSuggs As New ToolStripMenuItem("No suggestions")
            noSuggs.Enabled = False
            synonymsToolStripMenuItem.DropDown.Items.Add(noSuggs)
        End If

    End Sub

Conclusion

We hope that this article has shed light on how to achieve more advanced integration requirements. If you have questions or problems please feel free to email support@keyoti.com for assistance.
